Performance Evaluation

Experimental Configuration

The video encoding time is measured on Intel NUC

Performance of Reference AV1 Encoder Compared with HEVC

In this section we test the performance of AV1 compared to HEVC and VVC for intra frame encoding.

All the encoding modes are set to fixed qp. To fairly compare the encoding time for the same PSNR quality, qp is carefully chosen for the three codec. The range of qp for AV1 is 1-64 while it is 1-51 for HEVC and VVC.

The command is shown below.

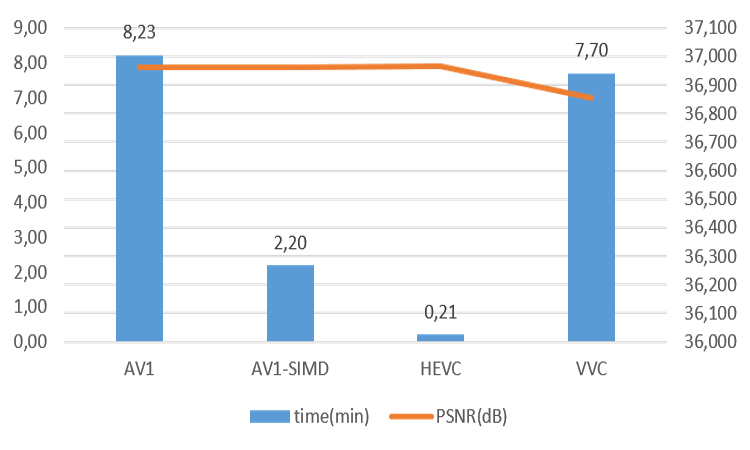

Figure below shows the results of the comparison

comparison of encoding time with similar PSNR (one 1080p frame)

It can be seen that for AV1, the encoding time can be greatly improved with SIMD. However, the encoding time is still slower than HEVC HM. It is 10 times slower than HEVC HM even with SIMD acceleration. Notice that the encoding time of AV1 without SIMD is very close to VVC.

To compare the compression efficiency, one 1080p video frame is encoded with QPs = 31, 39, 47, and 55 for AV1 and 27, 32, 37, and 42 for HEVC and VVC to evaluate the BD-BR and BD-PSNR.

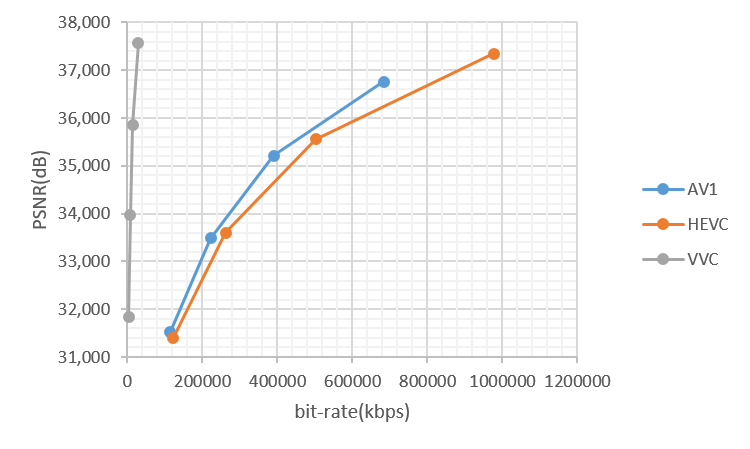

The figure of bit-rate VS PSNR is shown below.

bit-rate VS PSNR

It can be seen that the performance of AV1 is better than HEVC but lower than VVC.

The BD-BR and BD-PSNR of AV1 compared to HEVC HM in the table below

Baseline: HEVC HM
Encoder	BD-PSNR(dB)	BD-BR(%)
AV1

Analysis of Dataset

In the following sections, the dataset with 11 frames with single qp is used for evaluating the performance of different models. All 11 frames are from different videos. For 64 and 32 blocks, the image will be down-scaled to 16x16 first. The rest structure of the model remains the same for each model.

datasets for 64 and 32 block are smaller than 16 block.

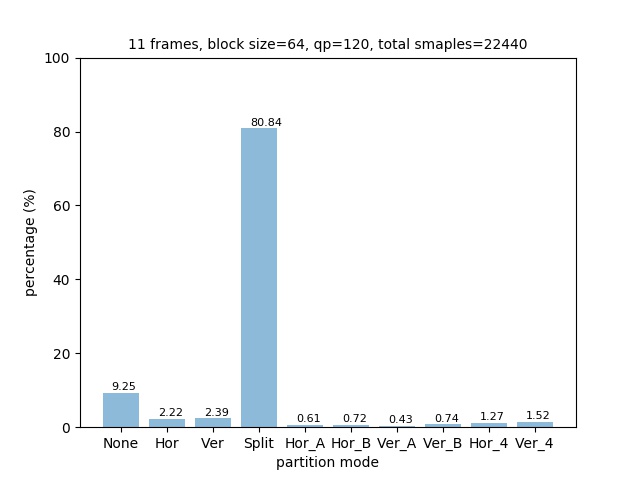

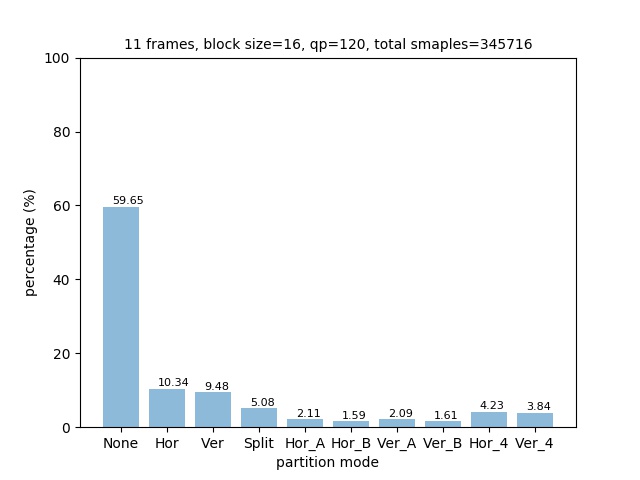

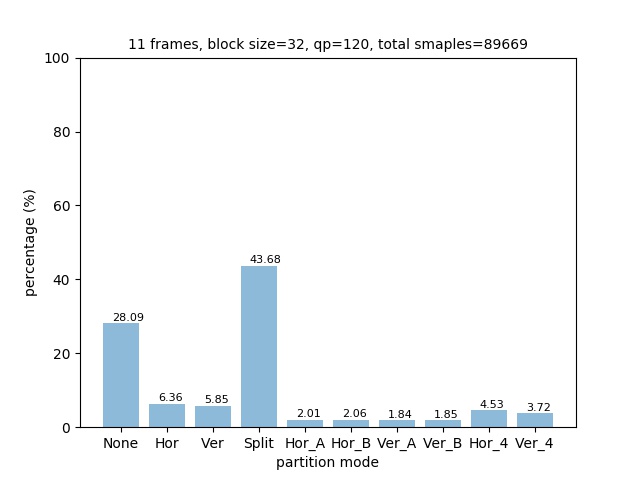

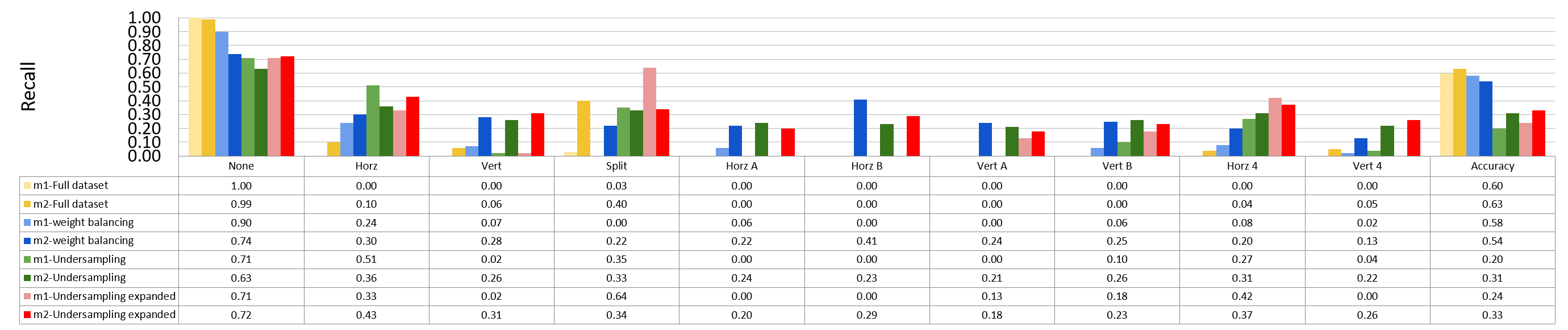

The distribution of partition modes of different block sizes is shown below.

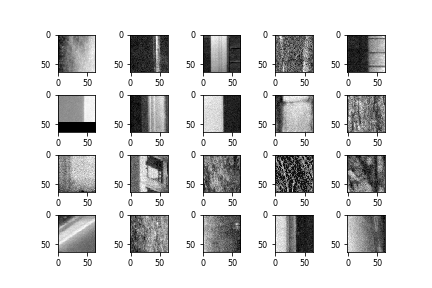

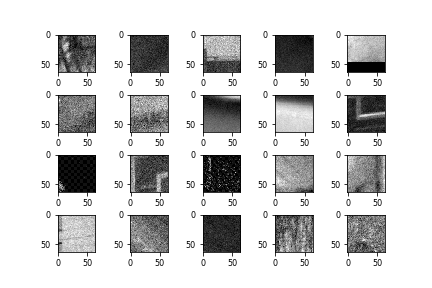

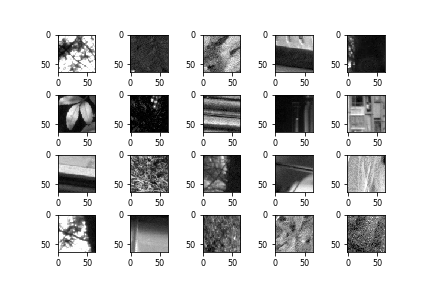

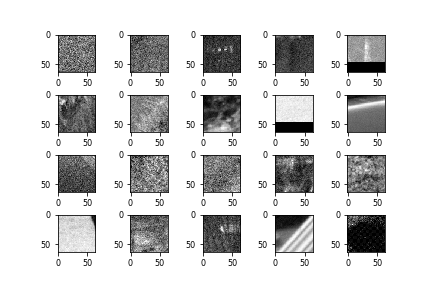

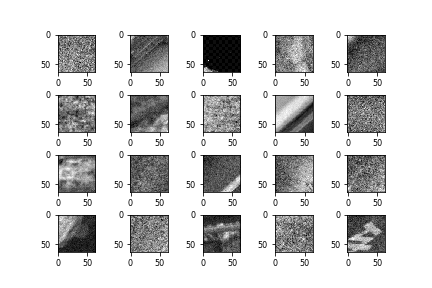

Some raw 64x64 images of each partition mode is shown below:

(left) None, (right) Split

It can be seen that blocks encoded with none are simpler and blocks encoded in Split mode have more complicated patterns.

(left) Horizontal, (right) Vertical

These two classes don’t have very clearer differences visually

(left) Horizontal A, (right) Horizontal B

These two classes don’t have very clearer differences visually

(left) Vertical A, (right) Vertical B

These two classes don’t have very clearer differences visually

(left) Horizontal 4, (right) Vertical 4

These two classes don’t have more clearer differences.

Overall, it can be seen that some classes show very similar patterns, which may be difficult for the model to classify them.

Visualization Through t-SNE

t-SNE can project high dimentional vector into 3D or 2D dimention. The tool is available in Tensorboard.

What if Tool

WIT can be used in two ways. One is using Jypter notebook and trained model using Tensorflow Estimator. The other way is to use Tensorboard. In this way we need to use Tensorflow Serving and TFRecord.

Kernal Map/Feature map Visualization

After training, weights in kernal map have been changed, checking the pattern of the kernal map may gives us the clue of what the model actually learns.

Feature maps are obtained after applying kernal maps on the image, so it can revreal the pattern the model sees.

One way to achieve this is to through autoencoder.

Evaluation of CNN models with different dataset

Training Results with 4K full dataset with 11 frames

We first train the model with the full dataset directly.

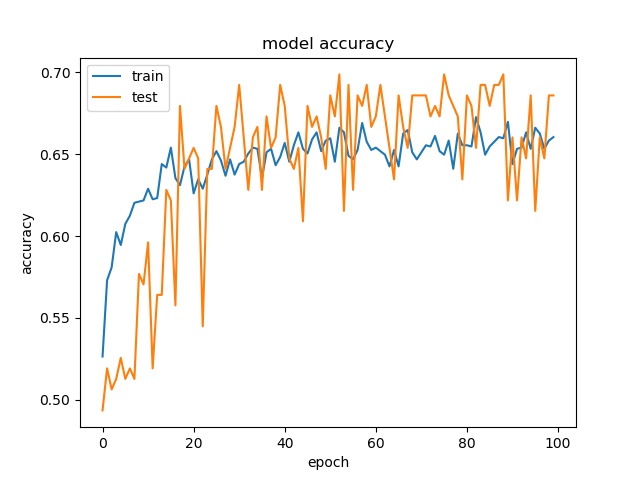

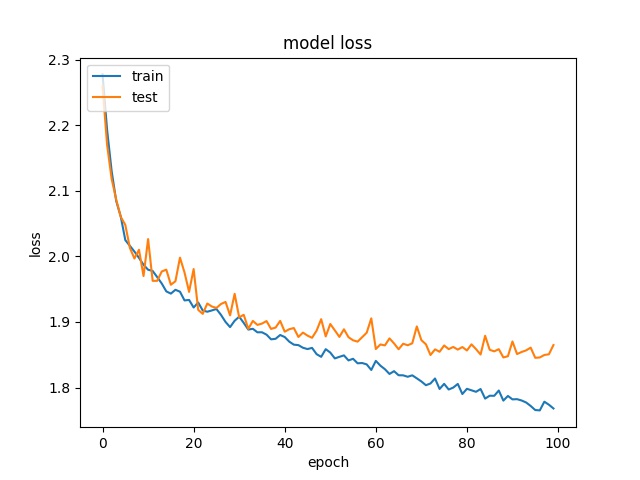

The training result with full dataset for block size 16x16, 32x32, 64x64 is shown below:

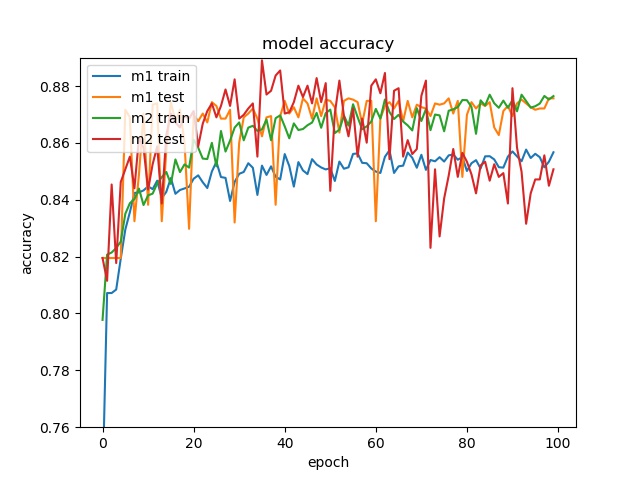

block size : 64x64

---

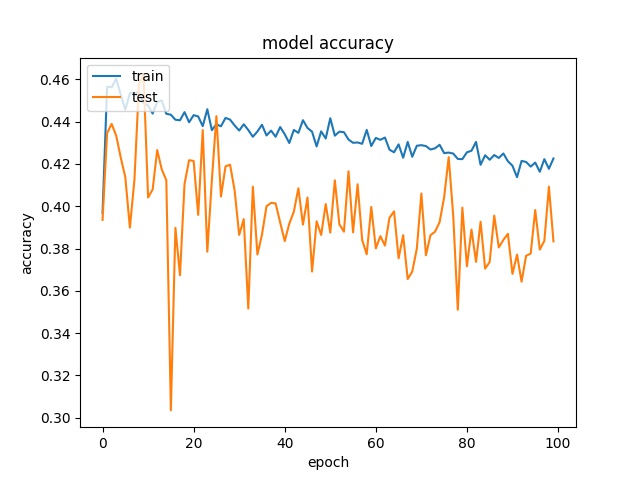

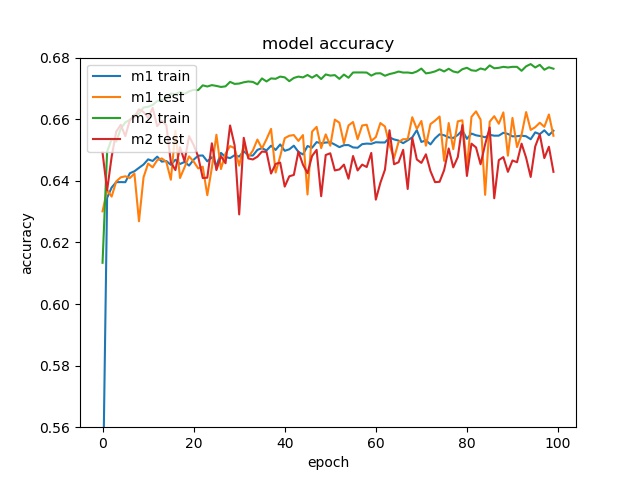

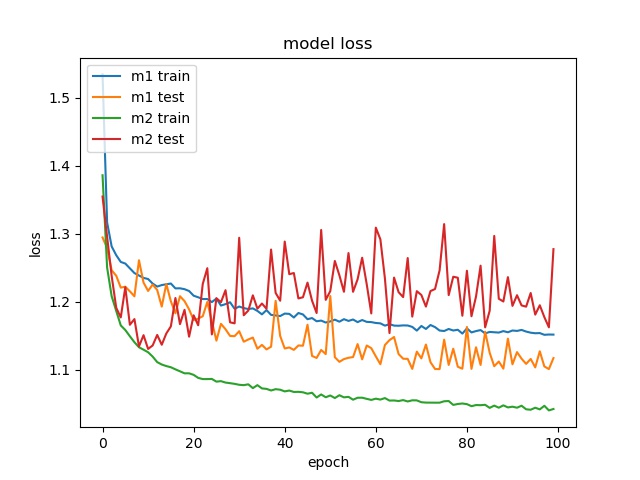

block size : 32x32

Here it can be seen that model2 start overfitting after 20 epochs, this is not because insufficient data but the imbalanced data, that cause the model starts to fit the training dataset. Two possible reasons for the encoder to stay at 65% accuracy. One is the model only learn the distribution. The reason that is not because insufficient data but imbalanced data is the following training with less data doesn’t show overfitting

---

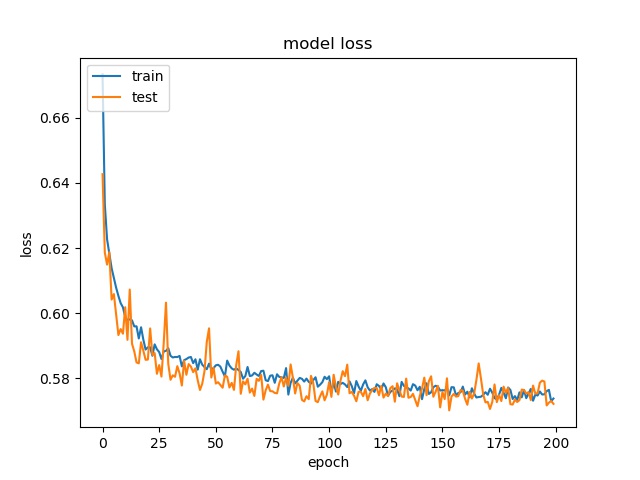

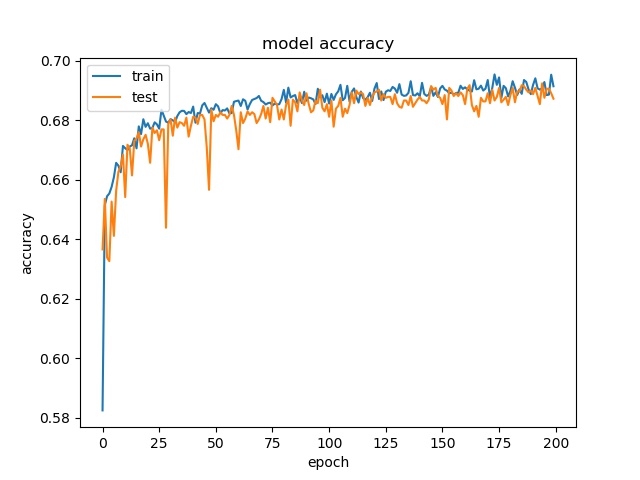

block size : 16x16

---

It can be seen that the accuray is quite close to the highest distribution of classes for both models.

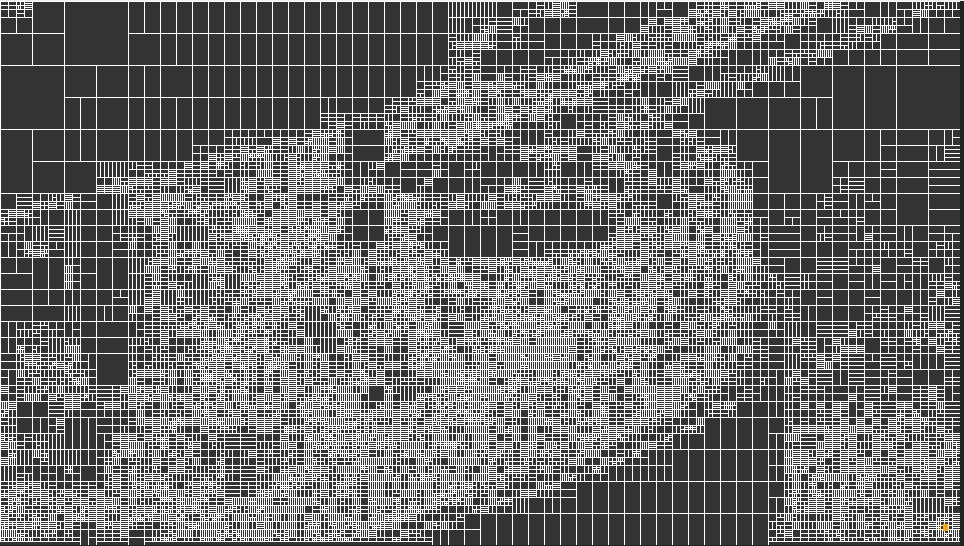

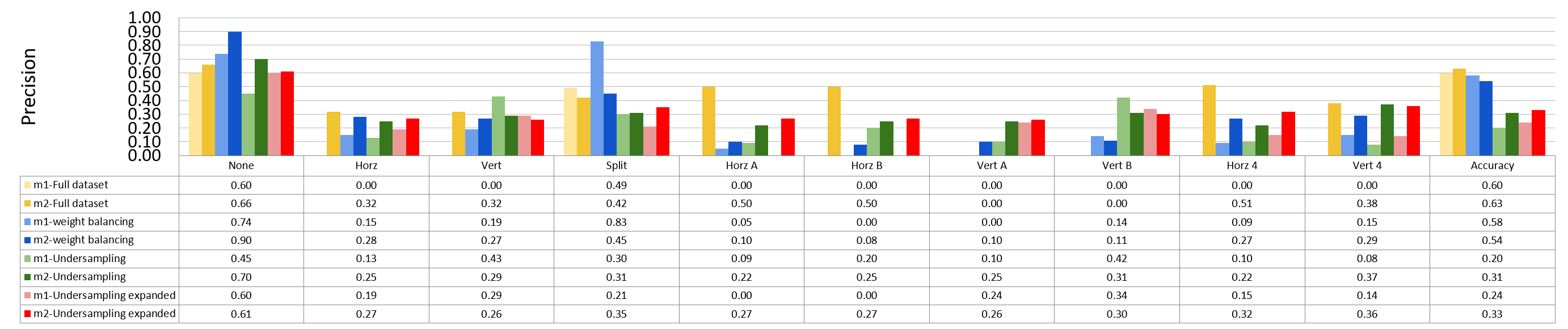

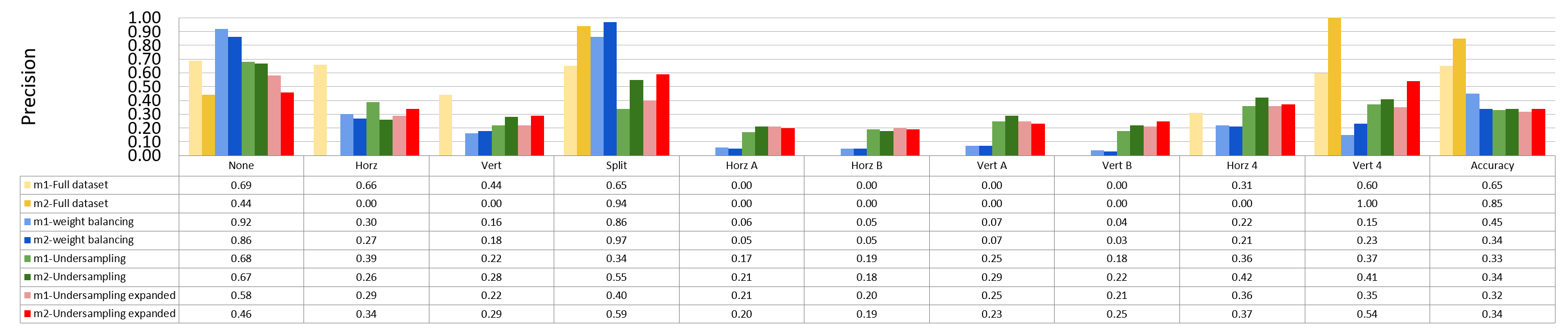

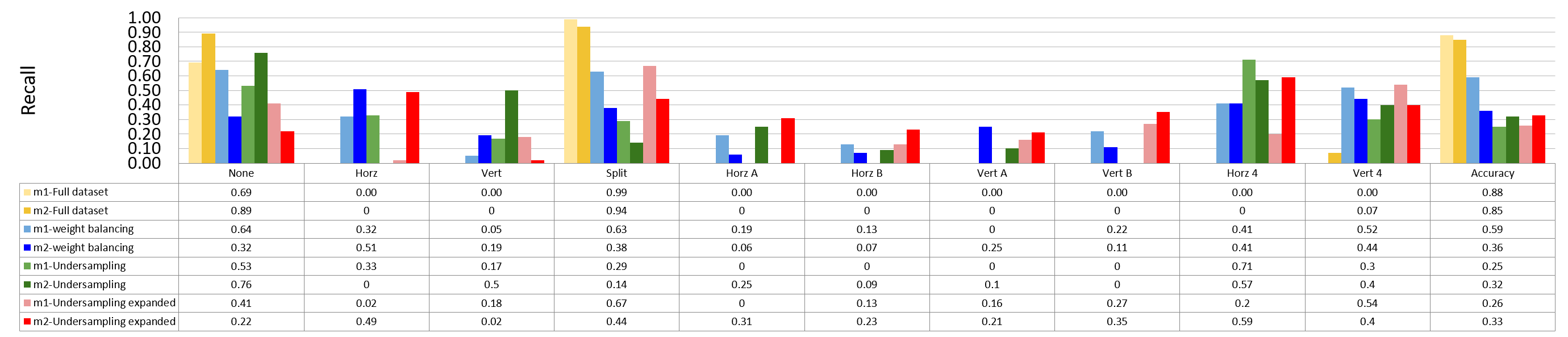

When using this model to predict a new frame, the prediction result is shown below.

The model mostly guess only split mode for block 64x64 and none and split modes for 32x32 and mostly none for 16x16.

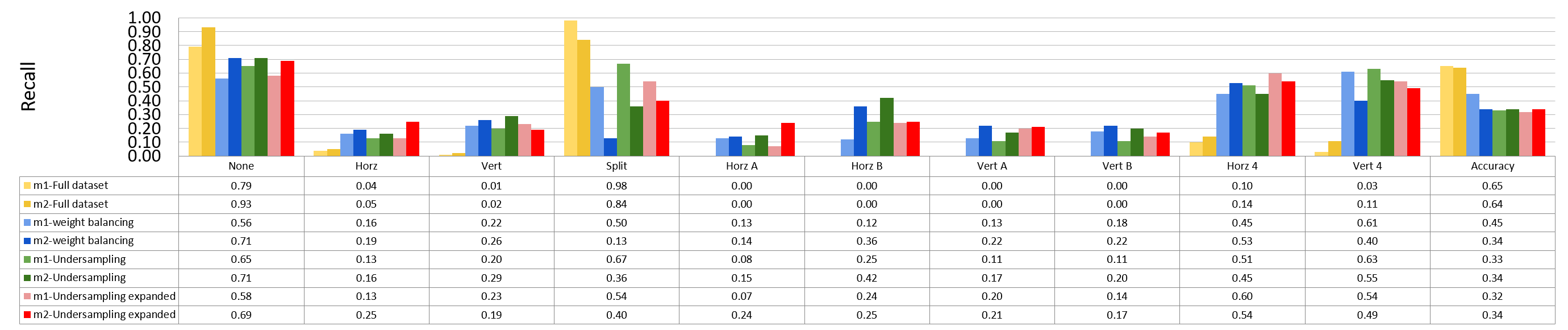

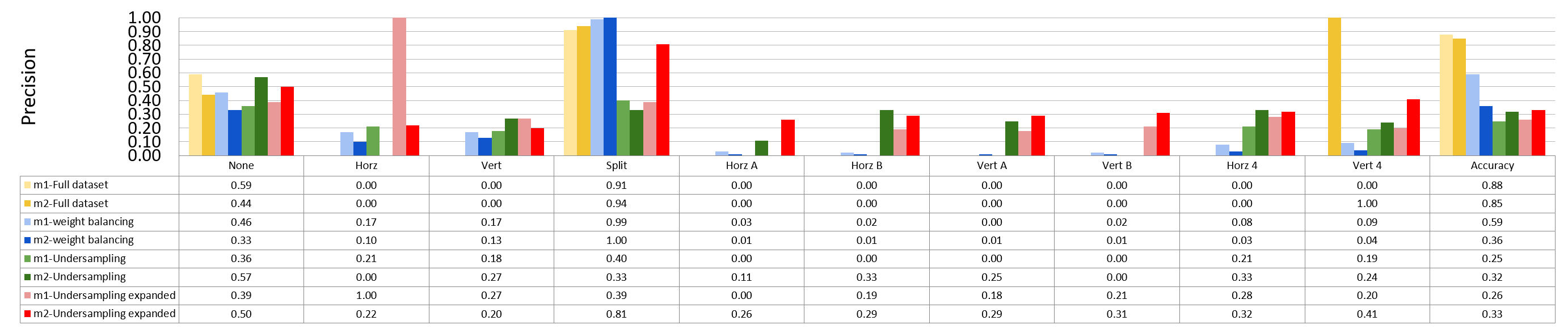

Partition Mode	Prescision		Recall		Samples
	m1	m2	m1	m2
None	0.6	0.66	1	0.99	20594
Horz	0	0.32	0	0.1	3647
Vert	0	0.32	0	0.06	3250
Split	0.44	0.42	0.06	0.4	1762
Horz A	0	0.5	0	0	699
Horz B	0	0.5	0	0	577
Vert A	0	0	0	0	730
Vert B	0	0	0	0	565
Horz 4	0	0.51	0	0.04	1479
Vert 4	0	0.38	0	0.05	1269
Total Accuracy	0.6	0.63	0.6	0.63	34572

Partition Mode	Prescision		Recall		Samples
	m1	m2	m1	m2
None	0.69	0.52	0.79	0.93	2477
Horz	0.66	0.43	0.04	0.05	547
Vert	0.44	0.23	0.01	0.02	551
Split	0.65	0.79	0.98	0.84	3925
Horz A	0.00	0.00	0.00	0.00	165
Horz B	0.00	0.00	0.00	0.00	182
Vert A	0.00	0.00	0.00	0.00	178
Vert B	0.00	0.00	0.00	0.00	158
Horz 4	0.31	0.41	0.10	0.14	427
Vert 4	0.60	0.45	0.03	0.11	357
Total Accuracy	0.65	0.64	0.65	0.64	8967

In order to avoid biased model due to the imbalanced data set. The other two strategies are used to correct this problem.

First one is to add a weight for cross entropy for each class to comprehend for the class with less data. Second one is to trim the data set so that every class has equal number of samples.

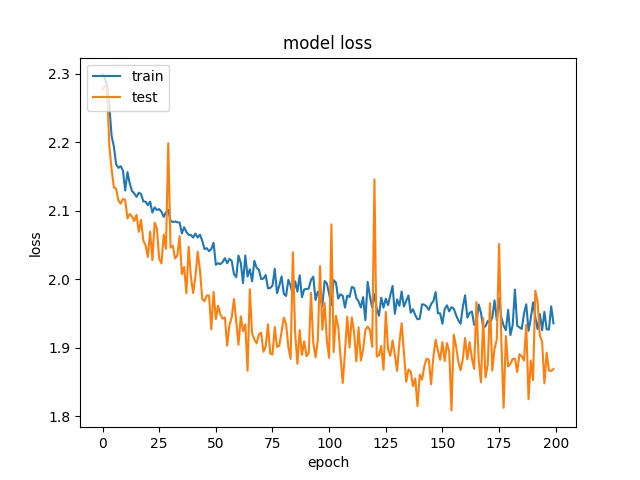

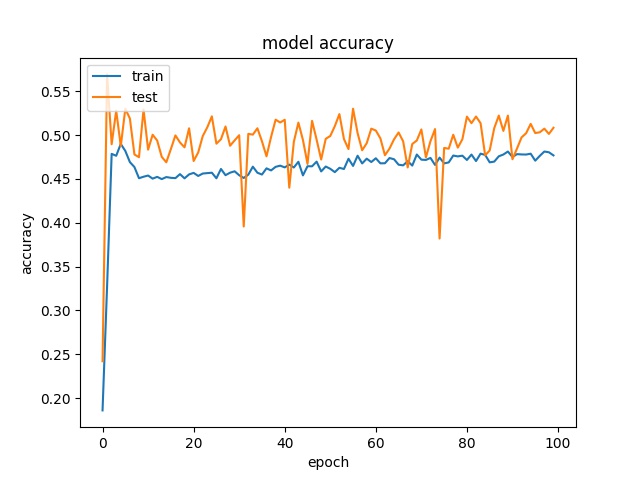

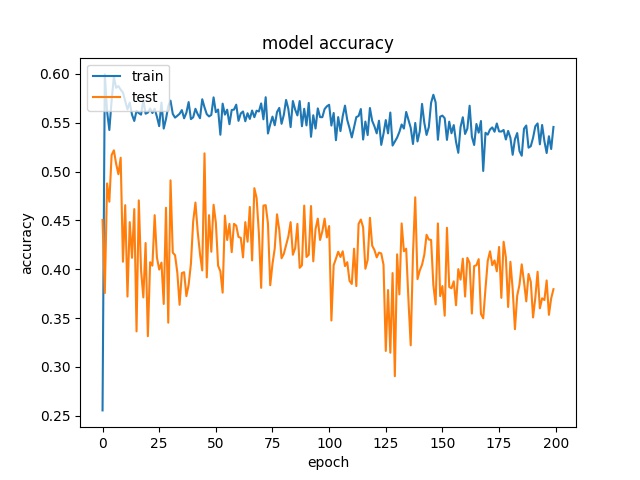

Training Results with weighted cross entropy

To compensate the imbalanced dataset, weights are given to different classes. The weights are inverse propotional to the number of samples of each class. This means when a false prediction on the class with less samples, the cross entropy will be much higher to adjust the parameters.

The actual number is showing below:

64x64 {0: 8.74, 1: 36.4, 2: 33.82, 3: 1, 4: 132.52, 5: 112.28, 6: 188., 7: 109.24, 8: 63.65, 9: 53.18}

32x32 {0: 1.55, 1: 6.87, 2: 7.47, 3: 1, 4: 21.73, 5: 21.2, 6: 23.74, 7: 23.61, 8: 9.64, 9: 11.74}

16x16 {0: 1., 1: 5.77, 2: 6.29, 3: 11.74, 4: 28.27, 5: 37.52, 6: 28.54, 7: 37.04, 8: 14.1, 9: 15.53}

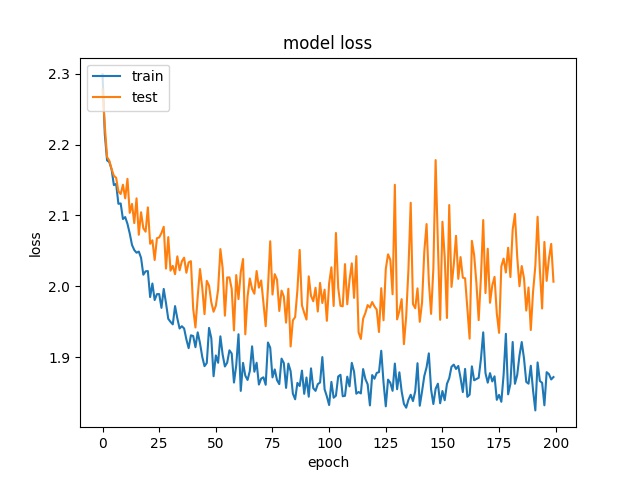

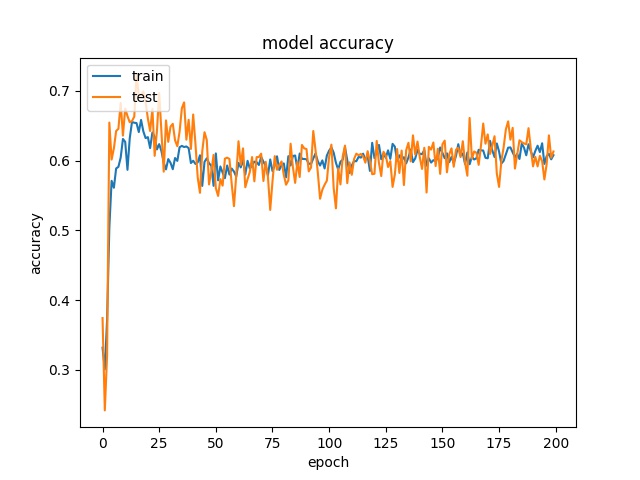

64

model1

model2

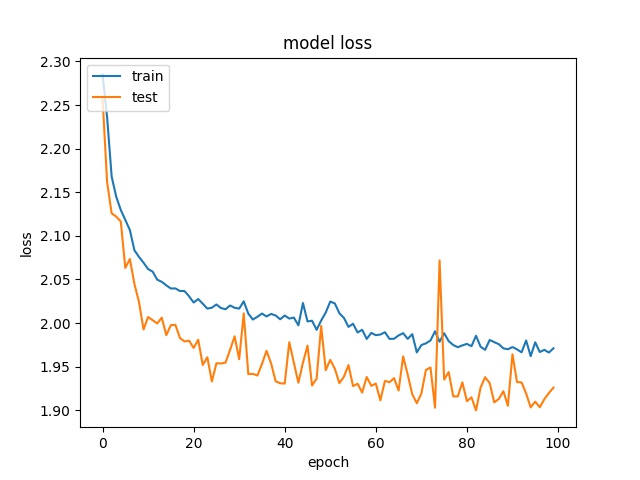

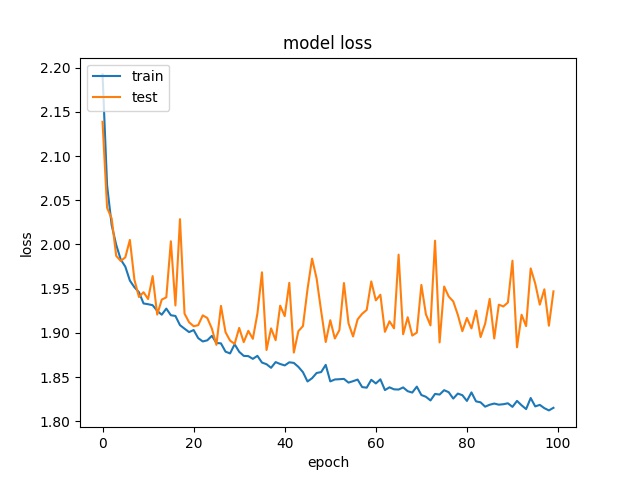

32

model1

model2

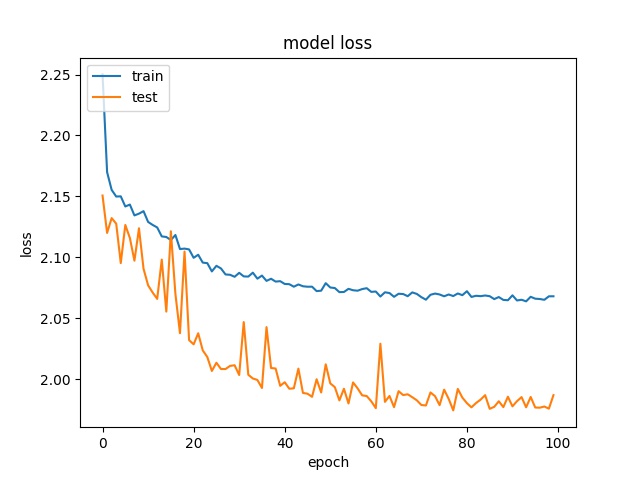

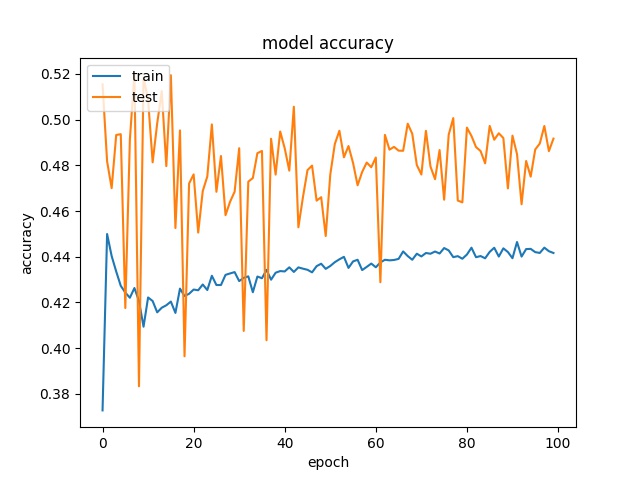

16

model1

model2

It can be observed that the accuracy for all block sizes dropped. The expectation of using weights for different classes is to compensate the classes with less samples. However, it shows the accuracy dropped by almost 20% for all block sizes. This may suggest the model is less biased but still couldn’t predict correctly.

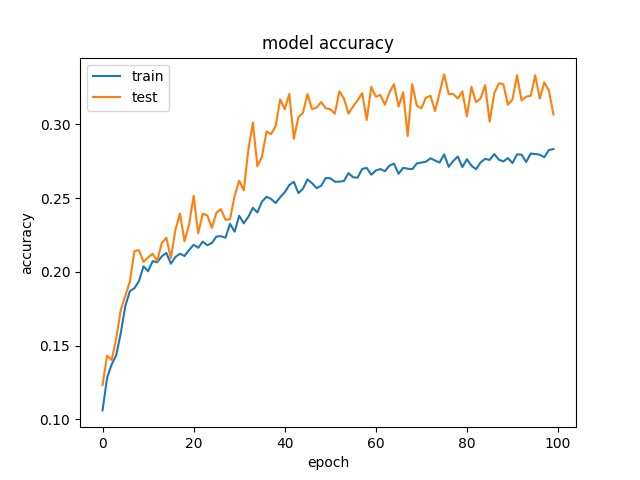

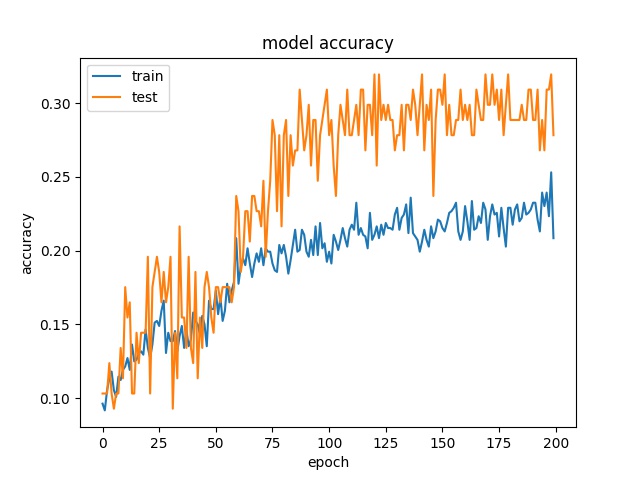

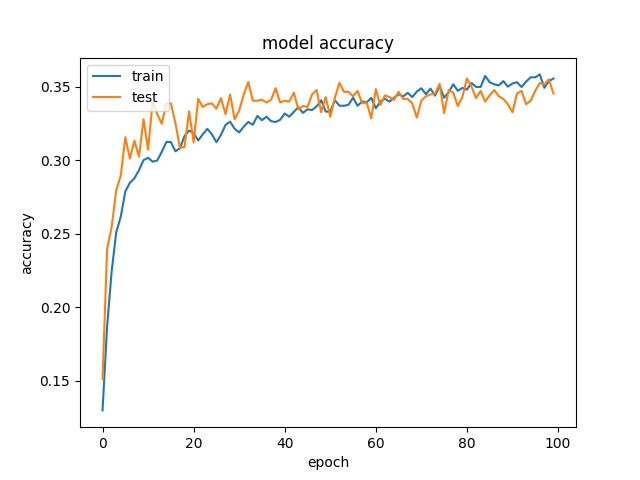

Performance with trimmed dataset (equal number of samples for each class)

In this method, the dataset is trimmed so that each class can have equal number of samples.

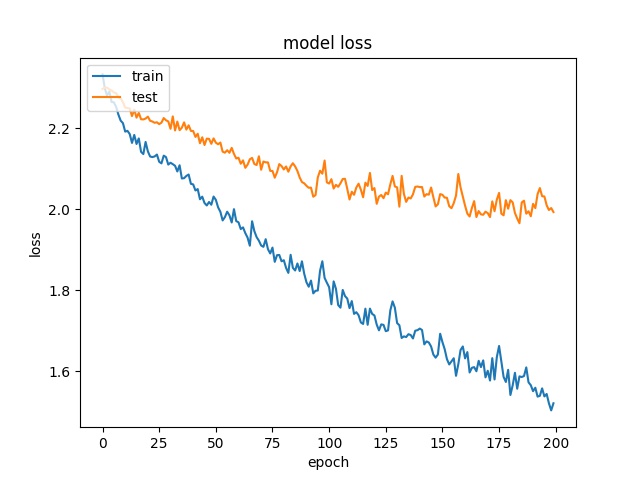

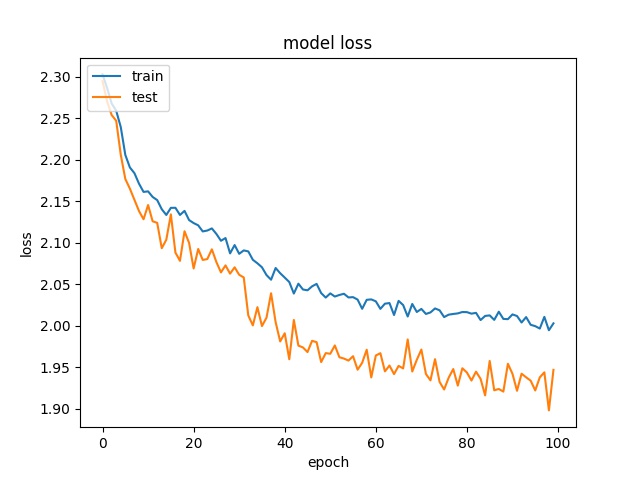

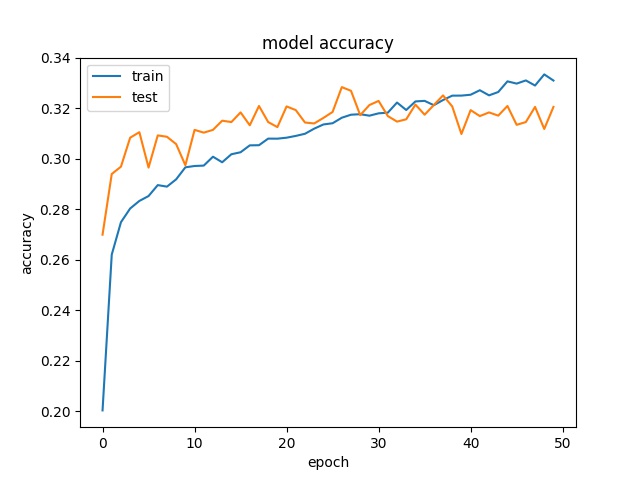

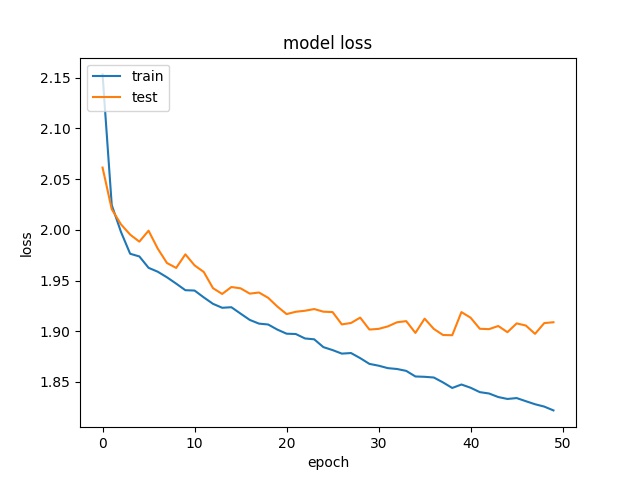

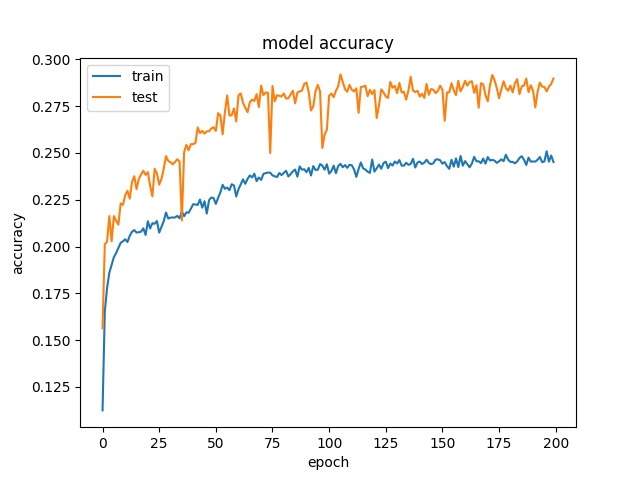

The training result for block size 16x16, 32x32, 64x64 is shown below:

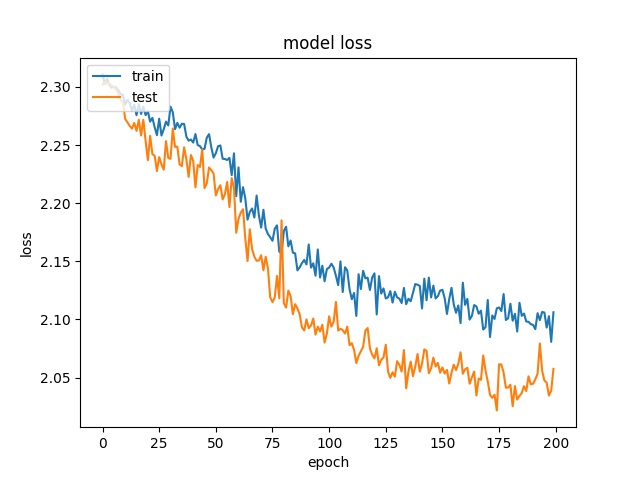

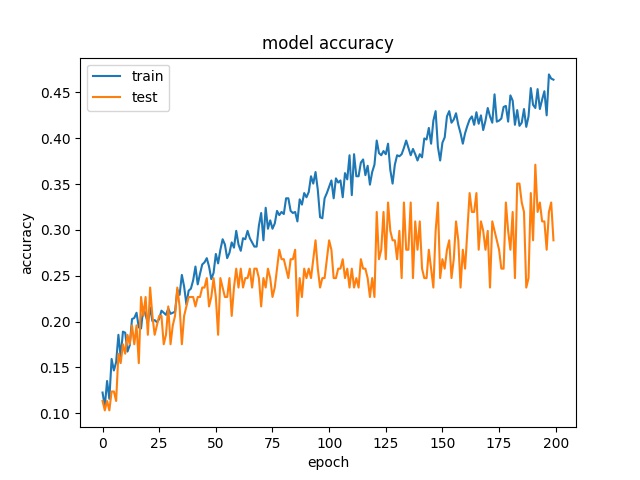

64

each class has 97 samples

model1

model2

32

each class has 1654 samples

model1

model2

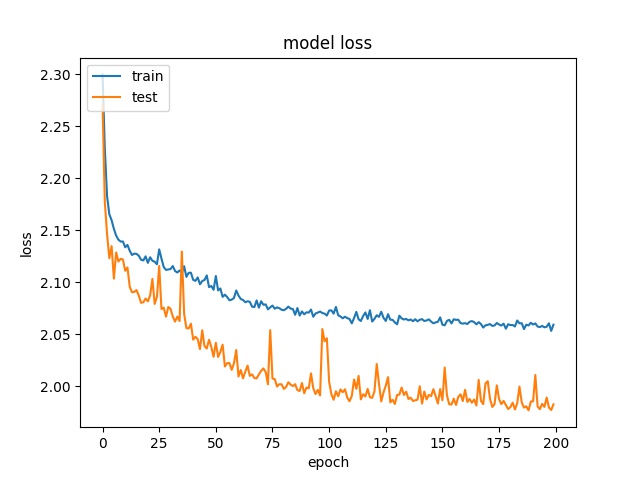

16

each class has 5493 samples

model1

model2

The results show that the accuracy is even lower, around 30% for all block sizes, which means the models can not really learn the features of each class. Two possible reasons are considered. The first possible reason is the patterns of different claases are not unique so the model can not learn correctly. The second possible reason is that both two models offer too less parameters to learn all the features of all 10 classes.

To clarify the first possible reason, we tear down the datas set to further inspect the relation between classes. Only two classes with equal number of samples are selected to see if the model can tell the difference between classes.

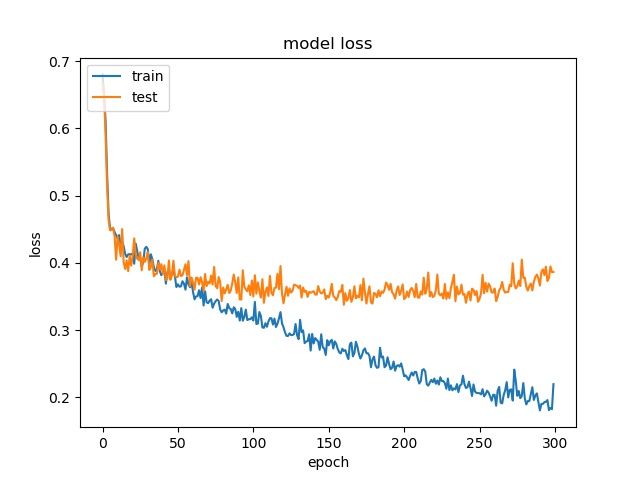

Binary Split and the Rest 9 classes

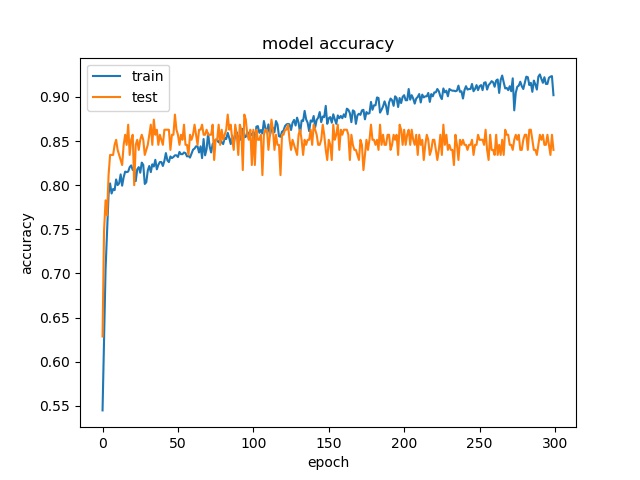

block size : 64x64

Split has 873 samples, the reast of classes also have 973 samples

---

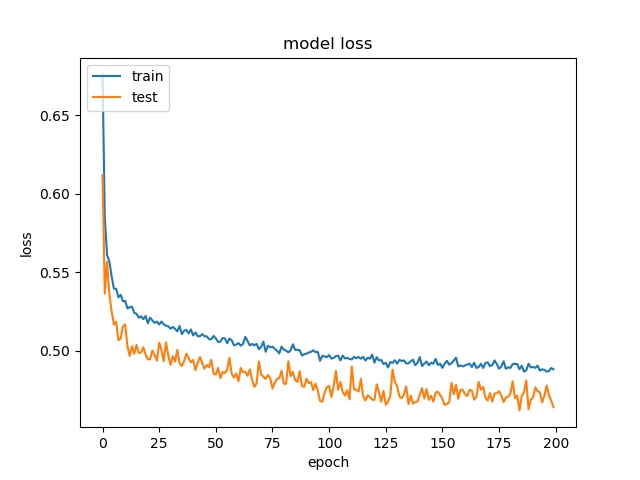

block size : 32x32

Split has 16479 samples, the reast of classes also have 16479 samples

---

block size : 16x16

Split has 873 samples, the reast of classes also have 973 samples

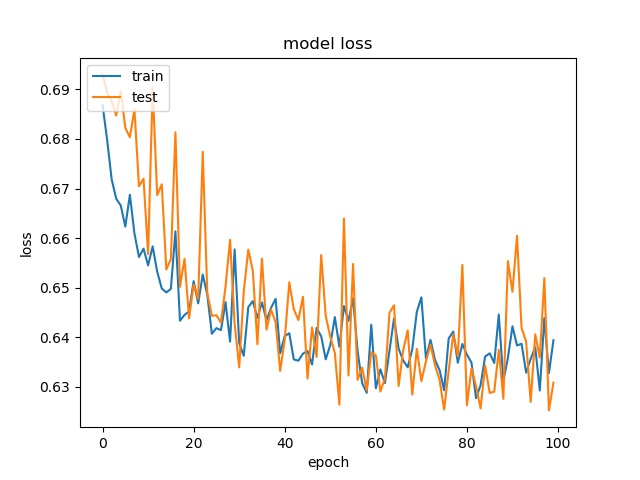

None and the Rest 8 classes (binary)

block size : 64x64

None has 776 samples, the reast of classes also have 776 samples

---

block size : 32x32

---

block size : 16x16

Training Results of Rest 7 Classes

Performance of CNN Intra Encoder

Encoding Performance

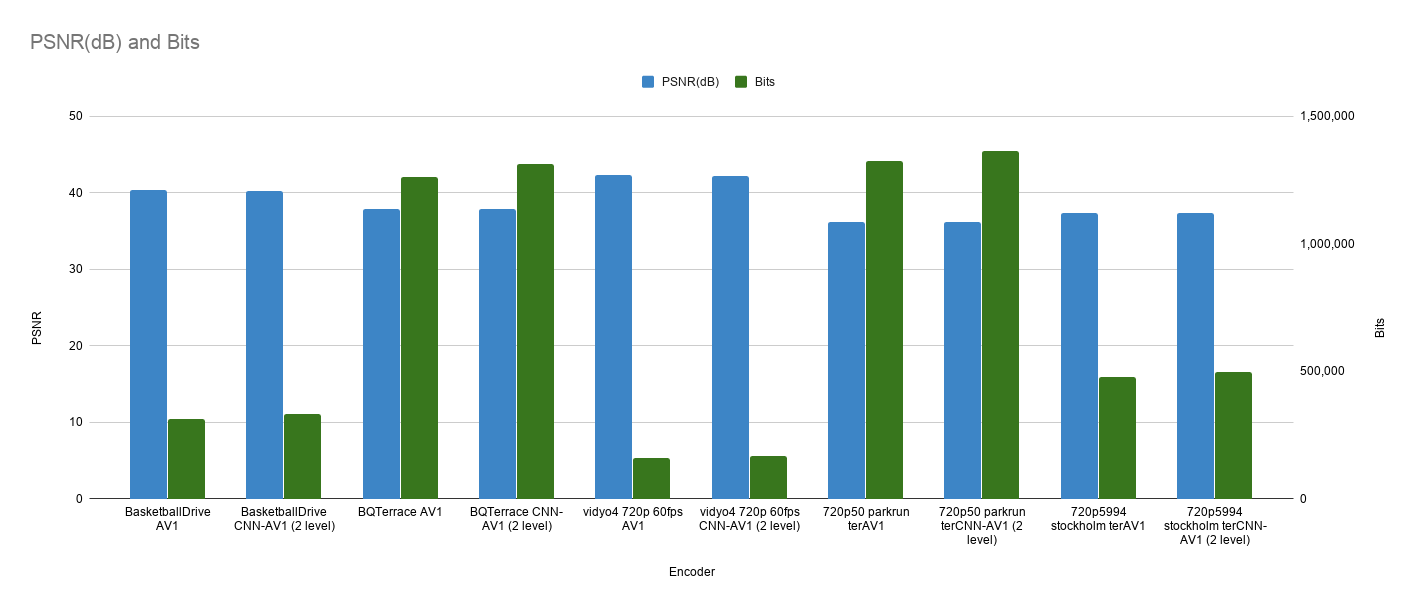

Comparison of Encoding Efficiency

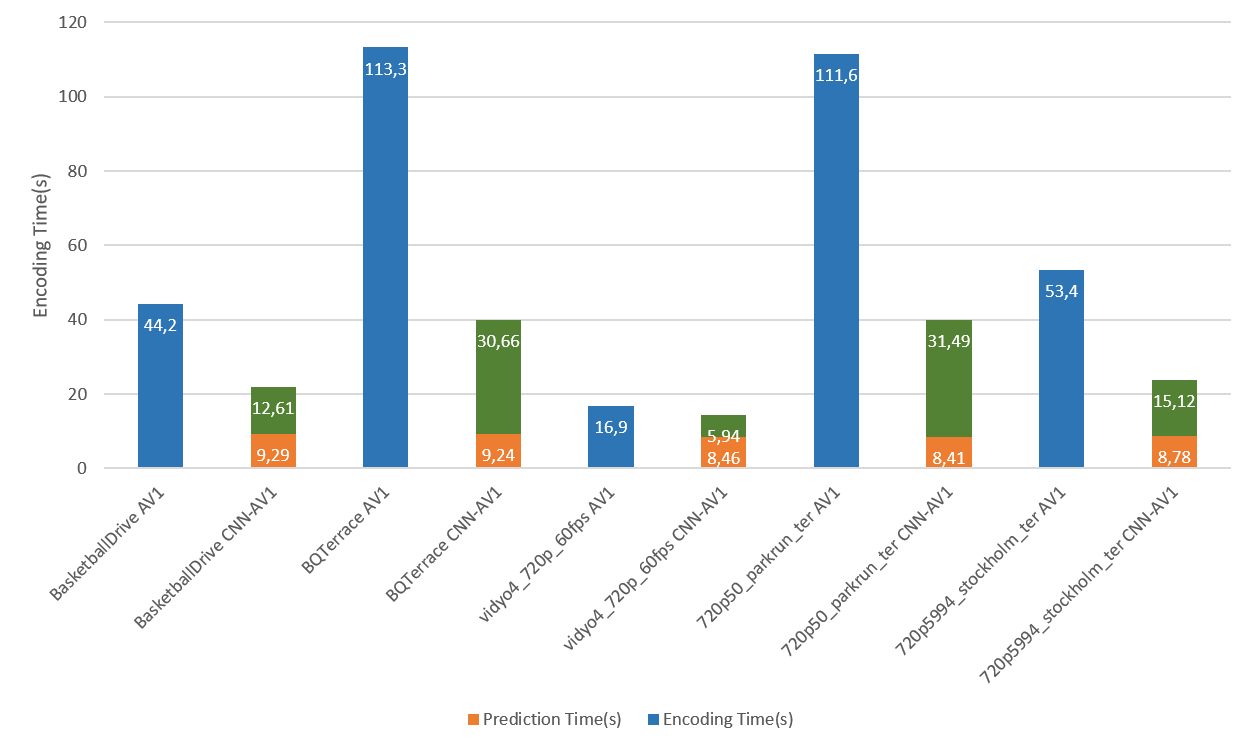

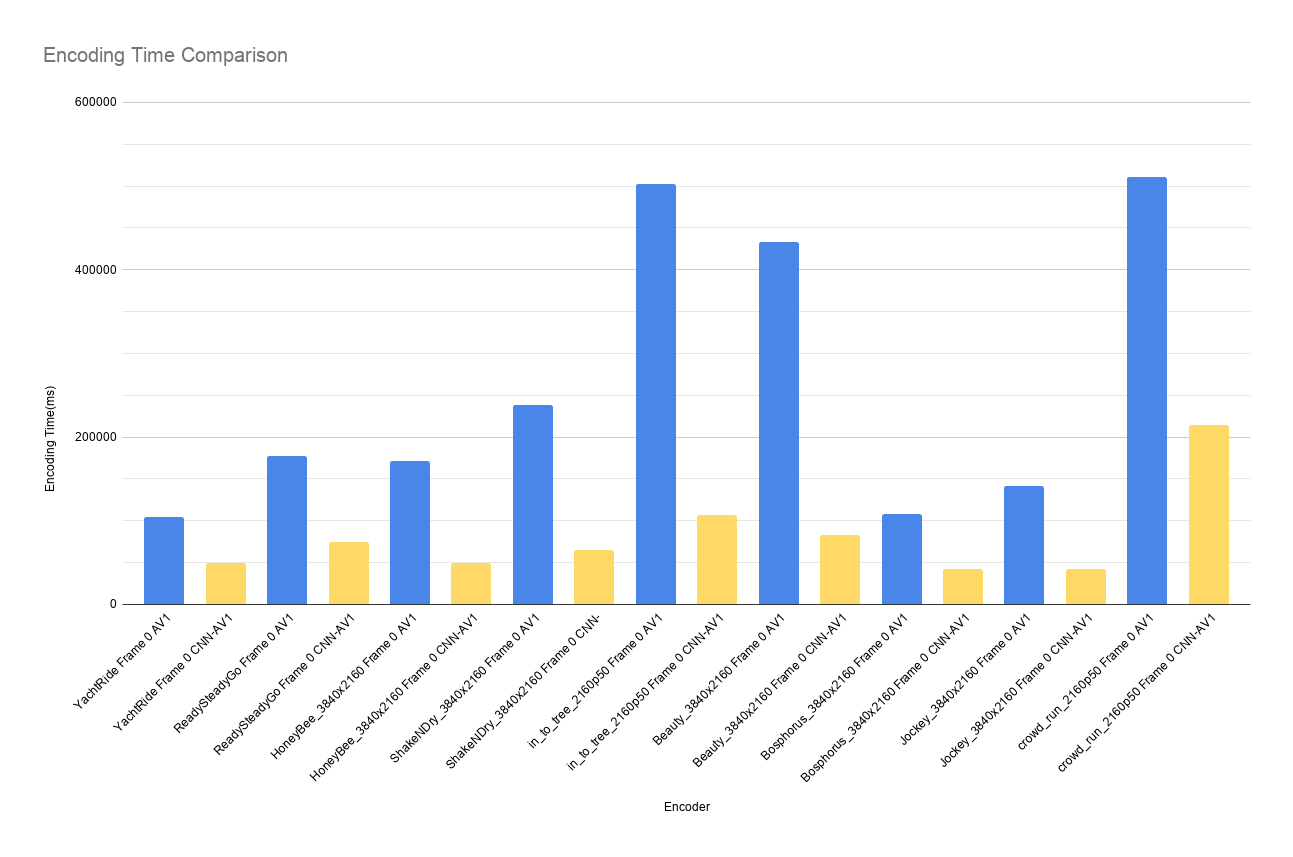

Comparison of Encoding Time

full dataset with weighted cross entropy

First, let the model learn the distribution of the classes may lead to the closest encoding efficiency to the original encoder. the down side of this solution is every frame has its own distribution. This will make the prediction imprecise. This will lower the performance of the encoder.

merged classes with binary submodel (really learn the class)

Second strategy is, merge the classes that can not be recognized easily. If the merged class is chosen, then use a sub model to further predict the partition mode.

Overhead

complexity reduction

Video Frame	Resolution	QP	Encoder	PSNR(dB)	Bits	Bits Increased(%)	Encoding Time(s)	Time Saved(%)
BasketballDrive Frame 0	1920x1080	30	AV1	40.281	311864		44.2
			CNN-AV1	40.212	329624	5.69	21.9	50.5
BQTerrace Frame 0	1920x1080	30	AV1	37.867	1260496		113.3
			CNN-AV1 (10 classes)	37.599	1300448	3.17	30.2	73.3
			CNN-AV1	37.855	1312248	4.11	39.9	64.8
Kimono1 Frame 1	1920x1080	30	AV1	41.829	341072		51.5
			CNN-AV1	41.729	349224	2.39	22.6	56.1
ParkScene Frame 1	1920x1080	30	AV1	38.834	854352		112.6
			CNN-AV1	38.798	885472	3.64	35.3	68.6
Tennis Frame 1	1920x1080	30	AV1	41.150	311416		41.1
			CNN-AV1	41.084	330040	5.98	20.5	50.1
station2 Frame 1	1920x1080	30	AV1	41.444	370568		50.7
			CNN-AV1	41.356	390272	5.32	23.1	54.4
sunflower Frame 1	1920x1080	30	AV1	44.323	242456		30.6
			CNN-AV1	44.239	258280	6.52	20.4	33.3
vidyo4_720p_60fps Frame 29	1280x720	30	AV1	42.246	160760		16.9
			CNN-AV1	42.124	168232	4.65	14.4	14.8
720p50 parkrun ter Frame 2	1280x720	30	AV1	36.101	1322016		111.6
			CNN-AV1	36.157	1363984	3.17	39.9	64.2
720p5994 stockholm ter Frame 2	1280x720	30	AV1	37.368	476712		53.4
			CNN-AV1	37.341	496440	4.14	23.9	55.2
park_joy_420_720p50 Frame 499	1280x720	30	AV1	35.483	1680376		145.8
			CNN-AV1	35.527	1714744	2.05	43.0	70.5
720p50_mobcal_ter Frame 500	1280x720	30	AV1	39.558	325824		36.1
			CNN-AV1	39.495	352544	8.20	18.9	47.6
720p50_shields_ter Frame 2	1280x720	30	AV1	37.338	689312		68.0
			CNN-AV1	37.372	723784	5.00	27.2	60.0
vidyo3_720p_60fps Frame 0	1280x720	30	AV1	41.805	173888		18.1
			CNN-AV1	41.666	185944	6.93	15.4	14.9
KristenAndSara_1280x720_60 Frame 0	1280x720	30	AV1	42.725	178304		16.8
			CNN-AV1	42.643	189872	6.49	16.5	1.8
Average						4.95		47.12

If predictions for 16x16 blocks are disabled, all the videos can be encoded successfully (Some prediction for 16x16 blocks will cause overflow in transform).

Video Frame	Resolution	QP	Encoder	PSNR(dB)	Bits	Bits Increased(%)	Encoding Time(ms)	Time Saving(%)
YachtRide Frame 0	3840x2160	30	AV1	43.183	895128		104611
			CNN-AV1	43.102	929656	3.86	49302	52.8711129805
ReadySteadyGo Frame 0	3840x2160	30	AV1	40.930	1547176		177540
			CNN-AV1	40.893	1590984	2.831481357	74780	57.8799143855
HoneyBee_3840x2160 Frame 0	3840x2160	30	AV1	40.026	796888		171061
			CNN-AV1	39.992	820960	3.0207507203	49784	70.896931504
ShakeNDry_3840x2160 Frame 0	3840x2160	30	AV1	39.856	1258320		238588
			CNN-AV1	39.798	1270784	0.9905270519	64885	72.8045836337
in_to_tree_2160p50 Frame 0	3840x2160	30	AV1	36.342	2949760		503017
			CNN-AV1	36.115	2775680	-5.9014970709	106941	78.7400823431
Beauty_3840x2160 Frame 0	3840x2160	30	AV1	36.537	1432704		433557
			CNN-AV1	36.343	1232392	-13.9813946216	82560	80.9575211564
Bosphorus_3840x2160 Frame 0	3840x2160	30	AV1	43.402	754848		108020
			CNN-AV1	43.302	783024	3.7326720081	42091	61.0340677652
Jockey_3840x2160 Frame 0	3840x2160	30	AV1	40.913	612312		141944
			CNN-AV1	40.880	632368	3.2754543435	42415	70.1184974356
crowd_run_2160p50 Frame 0	3840x2160	30	AV1	37.039	3380816		510269
			CNN-AV1	37.025	3400912	0.5944127098	214082	58.0452663203
Cactus_1920x1080_50 Frame 1	1920x1080	30	AV1	38.126	803040		106912
			CNN-AV1	38.114	815960	1.6088862323	67020	37.3129302604
blue_sky_1080p25 Frame 216	1920x1080	30	AV1	38.769	1581104		165020
			CNN-AV1	38.777	1589296	0.5181189852	114239	30.7726336202
Average						0.0499465196		61.039412855
